House for Film and Media

Stuttgart

Previous slide
Next slide

Stuttgart's cultural mile consisting of the Staatsgalerie, Württemberg State Library and Stadtpalais is to be extended to Wilhelmsplatz with the addition of the House for Film and Media. The new building is designed as a cultural and educational institution with an impact beyond the city limits. The appearance of the building is largely determined by the experience of the supporting structure.

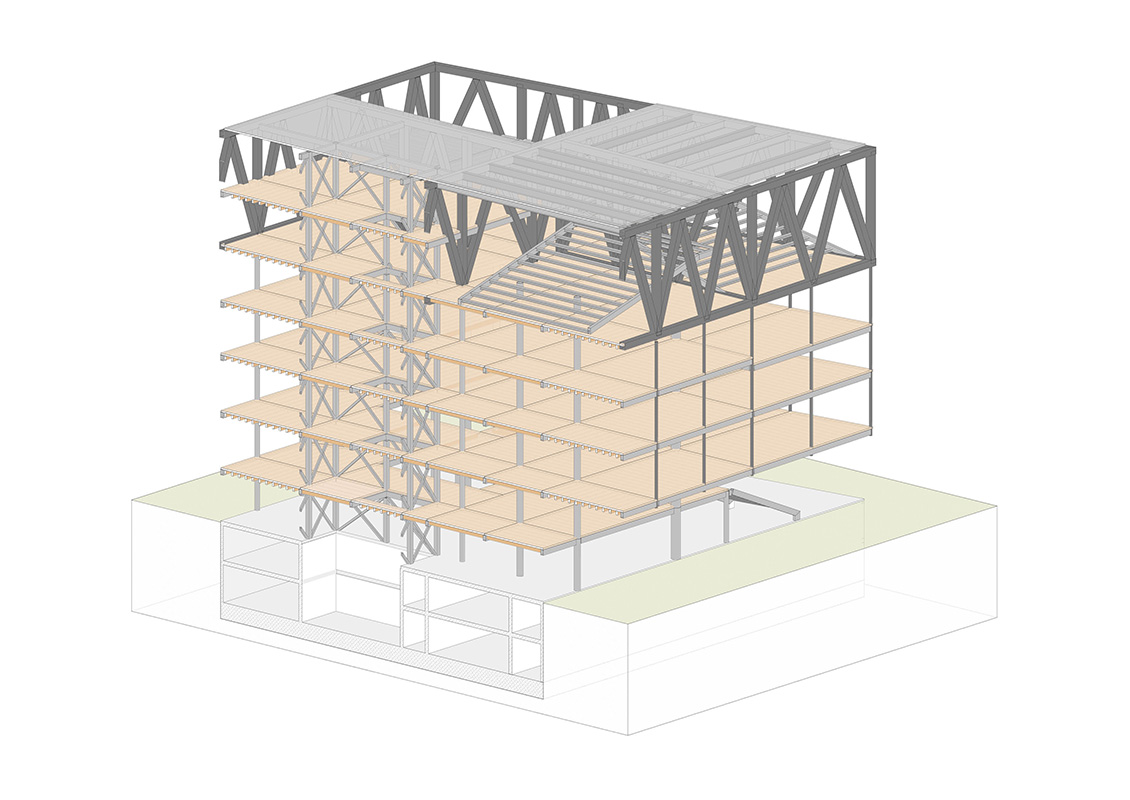

The nine-storey building with external dimensions of approx. 38 x 38 m consists of a total of seven rising storeys and two basement storeys. The two basement floors are an economical and robust reinforced concrete construction that acts as a rigid basement box and transfers all incoming loads evenly into the ground. All upper floors are designed in a lightweight steel and timber construction, with the main load-bearing elements consisting of steel columns and steel beams with suspended timber ribbed ceilings and slabs. The building is characterized by the generous cantilevers of the top five floors in two directions. These are realized via a circumferential steel truss. As a lightweight construction, the truss structure uses the top two storeys as the static height and serves as a low-deformation and economical suspension system for the cantilevered storey ceilings. All structural elements are prefabricated to a high degree, are assembled quickly and with low emissions on site and can also be dismantled completely non-destructively. In line with the circular economy, components can be completely reused or recycled with virtually no waste. Welded profile cross-sections made from recycled steel are used for the steel construction. By applying lightweight construction principles to the upper floors, the weight of the building can be significantly reduced. The lighter construction weight in turn leads to direct material savings in the lower storeys and the foundation and therefore to lower emissions. Overall, the structural design approaches enable an optimized ecological footprint of the building.

BUILDER

state capital Stuttgart

OUR PERFORMANCE

Structural design LP 1-2

OBJECT PLANNING

Delugan Meissl Associated Architects

PLANNING AND CONSTRUCTION

1st prize competition. No further commission.

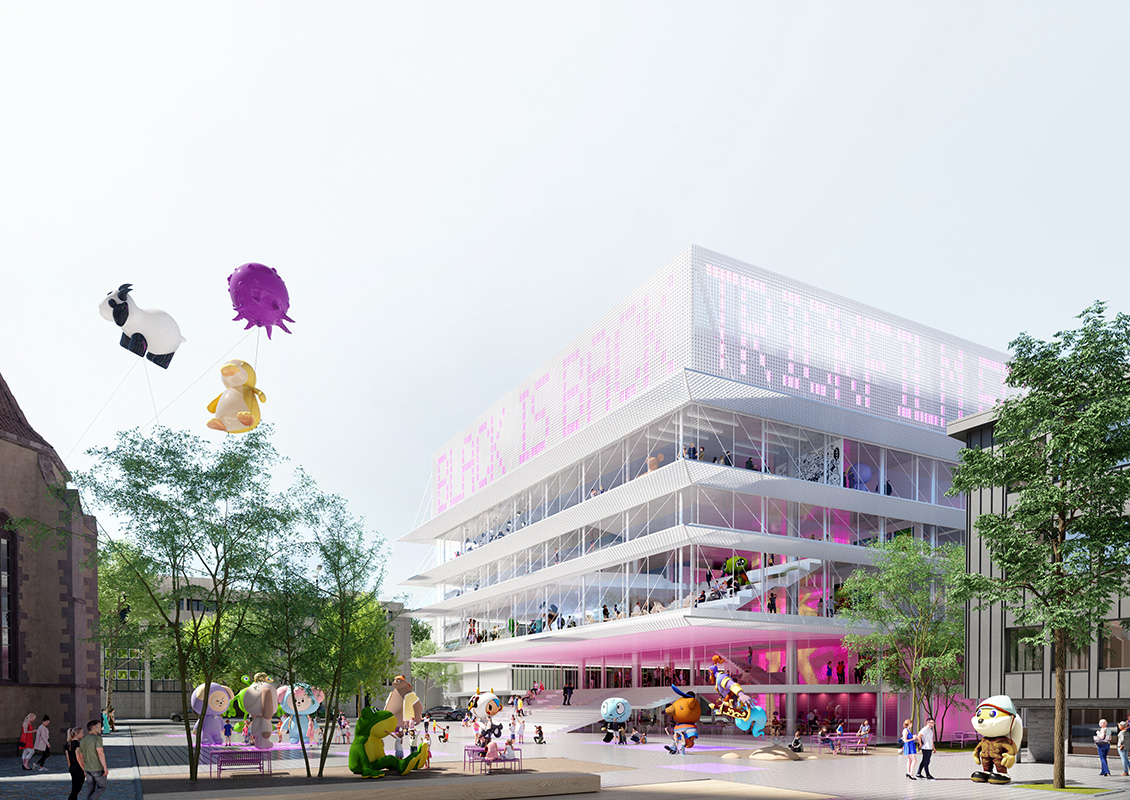

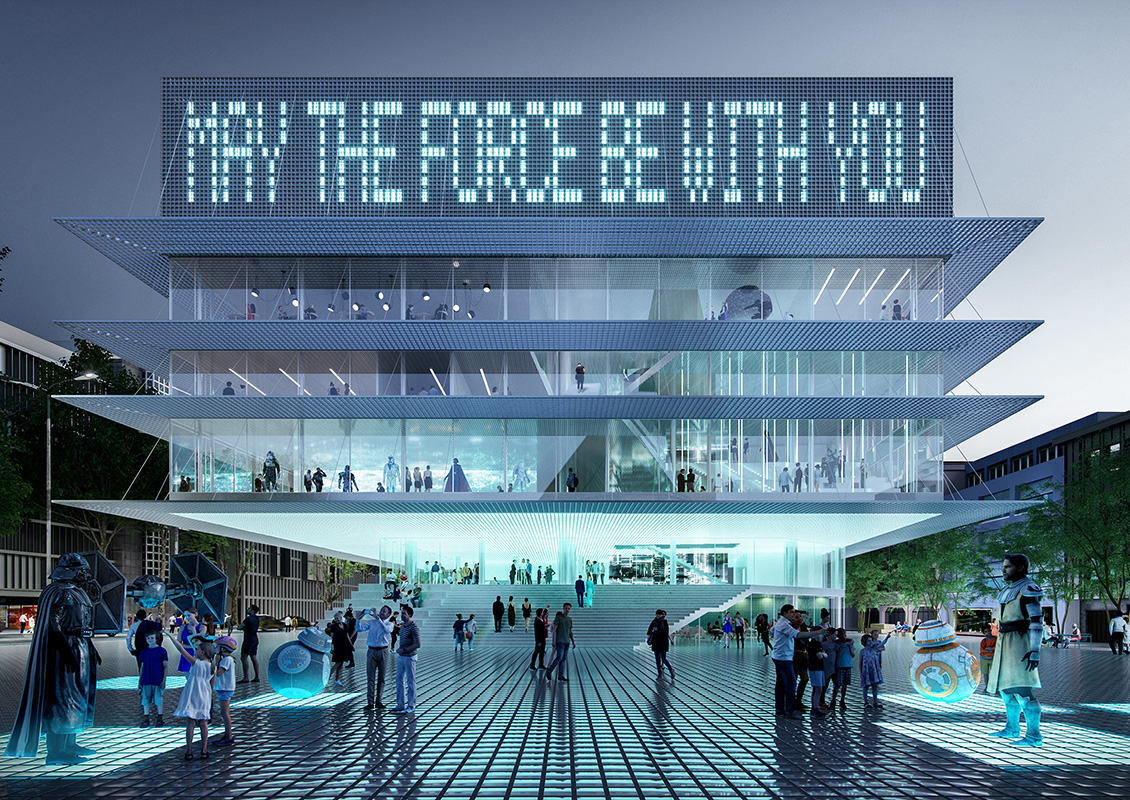

VISUALIZATION

Delugan Meissl Associated Architects, Vienna
